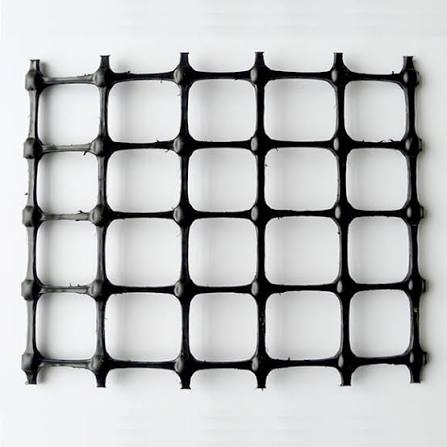

Extruded polypropylene biaxial geogrid with a nominal tensile strength of 40 kN/m in both machine and cross-machine directions. The heavy-duty grade in the biaxial range, for stabilising granular layers under sustained heavy loading.

Applications

• Mine and quarry haul roads
• Working platforms for piling rigs and cranes
• Heavy-duty yards, laydown areas and container hardstanding
• Rail formation and ballast support
• Embankment, slope and reinforced soil structures

How it works

Aggregate partially penetrates the apertures and is confined by the surrounding ribs. This restrains lateral spread under load, stiffens the granular layer and distributes wheel loads over a wider area of subgrade — allowing a thinner layer for the same performance, or longer service life at the same thickness. Under repeated heavy axle loading the benefit shows mainly as slower rut development.

Specification

• Polymer: polypropylene with UV stabiliser
• Structure: biaxial, extruded and biaxially stretched
• Tensile strength: 40 kN/m longitudinal and transverse
• Roll size: 3.8 m x 30 m
• Coverage: 114 m² per roll

Installation

Roll out onto prepared subgrade with joints overlapped 300–600 mm depending on subgrade strength; wider overlaps apply on very soft subgrade. End-tip and spread fill over the grid; plant should not track directly on the geogrid.

Supplied and installed nationwide by our own certified crews. Data sheets and project-specific design support on request.
