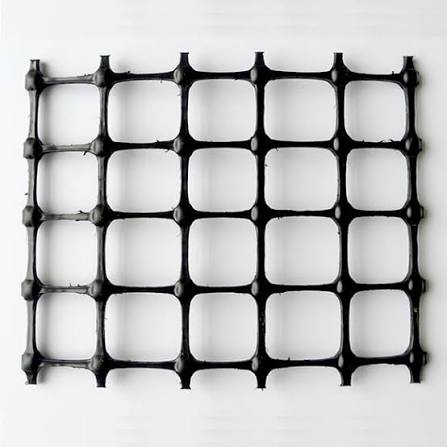

Extruded polypropylene biaxial geogrid with a nominal tensile strength of 20 kN/m in both machine and cross-machine directions. Used to stabilise granular layers over weak or variable subgrade in light to medium duty applications.

Applications

• Access tracks and site roads
• Car parks and light-traffic hardstanding
• Driveways, paving and landscaping over soft ground
• Subbase reinforcement beneath residential and estate roads
• Shallow embankment and slope reinforcement

How it works

Aggregate partially penetrates the apertures and is confined by the surrounding ribs. This restrains lateral spread under load, stiffens the granular layer and distributes wheel loads over a wider area of subgrade — allowing a thinner layer for the same performance, or longer service life at the same thickness.

Specification

• Polymer: polypropylene with UV stabiliser
• Structure: biaxial, extruded and biaxially stretched
• Tensile strength: 20 kN/m longitudinal and transverse
• Roll size: 4m m x 75 m
• Coverage: 300 m² per roll

Installation

Roll out onto prepared subgrade with joints overlapped 300–600 mm depending on subgrade strength. End-tip and spread fill over the grid; plant should not track directly on the geogrid.

Supplied and installed nationwide by our own certified crews. Data sheets and project-specific design support on request.
